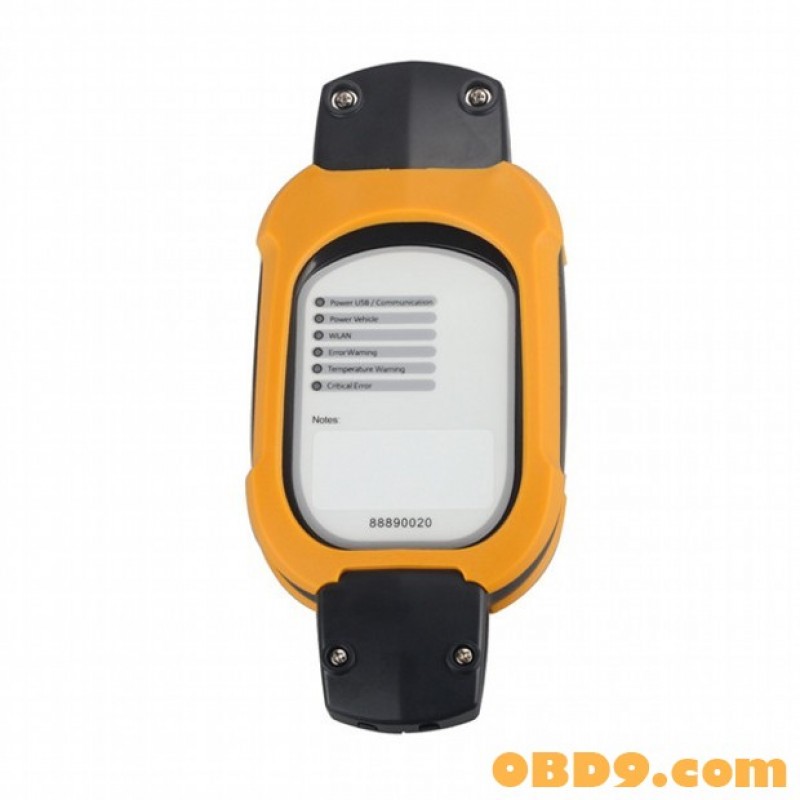

Vcads 88890180 (88890020 + Yellow Protection) Auto Diagnostic Interface for Volvo Support Multi-languages

Vcads 88890180 (88890020 + Yellow Protection) Auto Diagnostic Interface for Volvo Support Multi-languages

$938.00
Ex Tax: $938.00
Product Code: OBD9P0864
Stock Instock

Overview

Vcads 88890180 (88890020 + Yellow Protection) Auto Diagnostic Interface for Volvo Support Multi-languagesVcads 88890180 (88890020 + Yellow Protection) Auto Diagnostic Interface for Volvo Support Multi-languages Volvo 88890180 Interface Specification...

Vcads 88890180 (88890020 + Yellow Protection) Auto Diagnostic Interface for Volvo Support Multi-languages


Vcads 88890180 (88890020 + Yellow Protection) Auto Diagnostic Interface for Volvo Support Multi-languages

Volvo 88890180 Interface Specification:

Operating temperature range: -40 to +85°C.
Storage temperature range: -40 to +125°C.
Software version V2.01

How to connect Volvo Interface 88890180 to vehicle

Via USB-cable

1. Connect the communication unit to the vehicle.
2. Connect the USB-cable between the communication unit and the PC.
3. Select communication unit 88890180 and USB-cable setting in window Alternative.

Directly to the communication unit

Note: Your PC must have Wireless LAN 802.11b/g adapter and support 128-bit WEP encryption. The WEP-key is generated automatically and is not seen during the configuration.

1. Connect Volvo 88890180 (VCADS) interface to the vehicle.
2. Select communication unit 88890180 and Direct to communication unit in window Alternative.

Via an access point

Note: Contact the local IT-support or network technician before installation.

1. Connect Volvo 88890180 (VCADS) interface to the vehicle.
2. Select communication unit 88890180 and Via an access point in window Alternative.

Volvo 88890180 (VCADS) vehicle list:

VOLVO TRUCKS:
AC, FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6,FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12

VOLVO BUSES:
B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY

VOLVO CONSTRUCTION EQUIPMENT (CE):

Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL4611
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 ,G970, G976, G990
Compact Excavator: ECR88

RENAULT TRUCKS (with DXi engines):

CESAR, KERAX, KERAXMIL, MAGNUM, MIDLUM, PREMIUM, SH 23, SH 510

Package including:

1pc x Volvo 88890180 (VCADS) Auto Diagnostic Interface Main Unit
1pc x OBD2 Cable

Volvo 88890180 Interface PAB Board:

Volvo 88890180 Interface PAB BoardVolvo 88890180 Interface PAB Board
Volvo 88890180 Interface PAB Board
Volvo 88890180 Interface PAB Board

Vcads 88890180 (88890020 + Yellow Protection) Auto Diagnostic Interface for Volvo Support Multi-languages Software Download

Vcads 88890180 (88890020 + Yellow Protection) Auto Diagnostic Interface for Volvo Support Multi-languages User Manual
