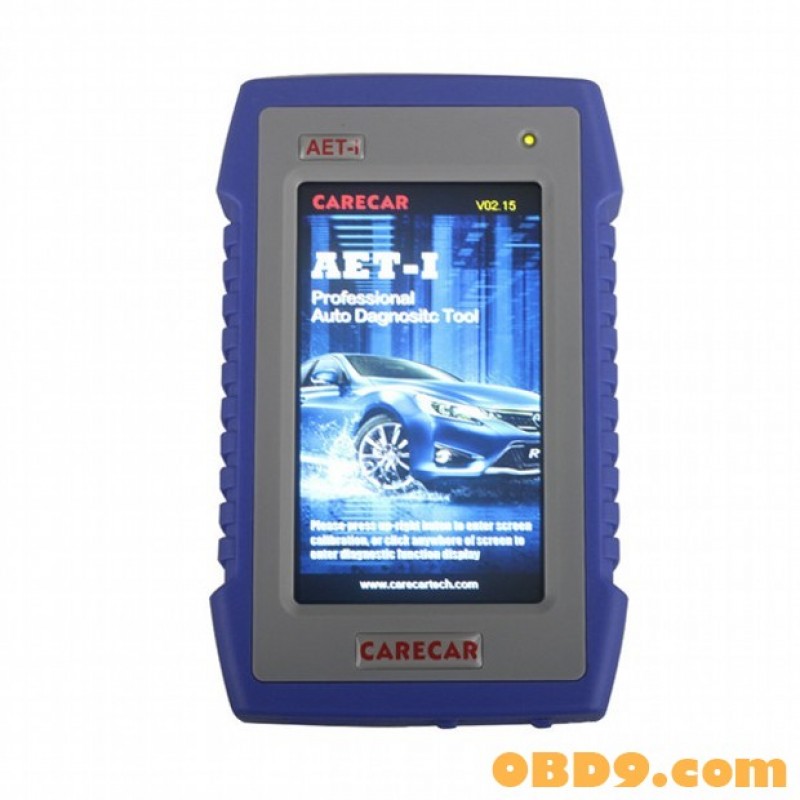

Original Carecar AET-I Retail DIY Professional Auto Diagnostic Tool
Original Carecar AET-I Retail DIY Professional Auto Diagnostic Tool
Dealer Code:A000045
Description of AET-I Auto Diagnostic Tool:
AET-I is much more than an OBDII scanner with multi diagnosis functions, it approaches and competes with professional auto diagnostic tools. It integrates the needs of Do-It-Yourself users and professionals with selectable vehicle software and high frequency of update.
REGION MAKER Language Version Upgrade Information
ASIA SUZUKI EN V13.0 Add Maintenance Reset Function.
ASIA SUBARU EN V13.0 Add Maintenance Reset Function.
EUROPE FORDEU EN V13.0 Add Maintenance Reset Function.
AUSTRALIA FORDAU EN V13.0 Add Maintenance Reset Function.
AMERICA FORDAM EN V13.0 Add Maintenance Reset Function.
EUROPE BMW EN V12.1 Fix the bug of DTC function for 2007 BMW 1 Series.
AMERICA JEEP EN V13.0 Add Maintenance Reset Function.
AMERICA CHRYSLER EN V13.0 Add Maintenance Reset Function.
AMERICA SCION EN V12.1 Add Maintenance Reset Function.
ASIA TOYOTA EN V12.1 Add Maintenance Reset Function.
ASIA LEXUS EN V12.1 Add Maintenance Reset Function.
PRO SCION PRO EN V12.1 Add Maintenance Reset Function.
PRO TOYTOA PRO EN V12.1 Add Maintenance Reset Function.
PRO LEXUS PRO EN V12.1 Add Maintenance Reset Function.
ASIA NISSAN EN V13.0 Add Maintenance Reset Function.
ASIA IFINITI EN V13.0 Add Maintenance Reset Function.
ASIA ACURA EN V13.0 Add Maintenance Reset Function.
ASIA HONDA EN V13.0 Add Maintenance Reset Function.
EUROPE FIAT EN V13.0 Add Maintenance Reset Function.
EUROPE ALFA EN V13.0 Add Maintenance Reset Function.
PRO ACURA PRO EN V13.0 Add Maintenance Reset Function.
PRO HONDA PRO EN V13.0 Add Maintenance Reset Function.
Difference between AET-I and C68:
1. AET-I have more often update than C68
2. AET-I add following special function which C68 do not have: EPB Reset, Key Programming, Reset Service Light, Throttle Reset, TPMS
3. AET-I you can also choose any software you want to add, each software cost only 35usd.
Standard Configuration:
ONE vehicle make with OBD II & EOBD
More vehicle software is available to be added by paying extra charge
Support following protocols:
PWM
VPW
KWP2000
ISO9141
CAN-BUS
Basic Function:
Read DTC
Clear DTC
Read Live data
Actuation
Special Function:
Turns off MILs of engine, airbag, ABS, A/T
Resets oil service light, service mileage and service intervals
Key programming
ECU programming
Control unit programming
Adaptation
New car window or door programming
Replaces and recalibrates brake pads safely
Tire pressure monitor etc
Advantages:
Hand held with robust functions, at OE level
Best choice for car owners and specific brand workshop
Faster processing speed with exclusive platform
One key update Tool made it easy to upgrade software online
1 year quality guarantee
Economic price & affordable for car owners
17 Language available
CE, FCC & RoHS certificate
Technical Parameters:
Main Unit Size: 147 x 92.8 x 30.5 mm
CPU: Industrial Class ARM32
Memory: 64M
SD card: Support mass external storage card
Interface: USB 2.0
Voltage: DC 9V-28V
Display Screen: 4.3 inch LCD touch screen (480*270) TFT
Available Vehicle list:(Package only come with one software, other software need pay for it, each software cost is 35usd)
USA
GM(Chevrolet/Buick/Cadillac/Holden/GMC/Pontiac/Saturn/Hummer/some Opel/Vauxhall etc)
Chrysler (Chrysler/Dodge/Jeep)
US Ford
Europe
Fiat Lancia Alfa Romeo Mercedes Benz Smart Sprinter Audi
BMW VW Skoda Seat Saab Volvo Opel Renault Citroen
Peugeot Land Rover Vauxhall Jaguar Rover Porsche Euro Ford
Asia
Honda(Honda/Acura) Toyota (Toyota/Lexus/Scion) Nissan(Nissan, Infiniti)
Suzuki Subaru Daihatsu Mitsubishi Mazda Isuzu
Kia Hyundai Daewoo Ssangyong
Maruti Mahindra Tata Perodua Proton
Golden Dragon Lifan Brilliance Chery GreatWall HaFei
Geely Chang an Changhe BYD SH GM Wuling Tailand Isuzu
Indonesia Suzuki Indonesia Daihatsu Roewe MG
Australia
Holden Australian Ford
Middle East
Iran Kia Iran Citroen Iran Peugeot
Packing list:
1pc x set Main Unit
1pc x Main Cable
1pc x OBD II 16 pin adapter
1pc x SD card reader
1pc x professional tool kit
