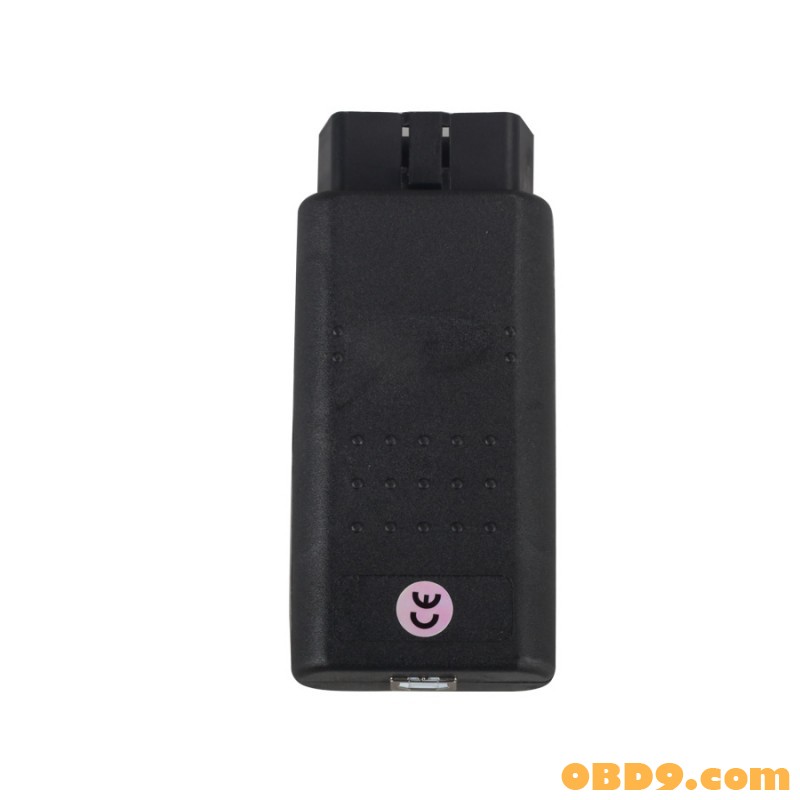

Opcom OP-Com 2012 V Can OBD2 Opel Firmware V1.45 with PIC18F458 Chip
OPCOM 2012 software 120309a firmware V1.45 with the PIC18F458 chip covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B. opcom 2012 will help read and clear fault codes for many control units.
Opcom OP-Com 2012 V Can OBD2 Opel Firmware V1.45 with PIC18F458 chip
Software / Firmware version:
Software VERSION: 120309a
Firmware version: 1.45
OPCOM 2012 Function, Workable Vehicle and Control System:
OP-COM is a PC-based diagnostic program, it can read out and clear detailed fault codes, read live data, and perform output test on many control units (e.g. Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, etc.) for almost all Opel cars even the new CAN-BUS protocol cars such as Vectra-C, Astra-H and Zafira-B, etc.
Note:
Since Opel cars are built with many pins in the OBD connector, you need select the appropriate pin for communication with diagnostic interface:
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
OPCOM 2012 Feature:
1) Full status information (Present, Not present, Intermittent)
2) You can print out, save, or copy the fault codes to any other application. From the fault codes interface, you can go directly to the measuring blocks interface.
3) The program shows you measuring block information on many control module, but you can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate mostly depends on the communication protocol. For example, the older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while the newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!
You can also run output tests on many controllers.
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps
Package List:
1pc x OP COM Interface
1pc x USB Cable
1pc x Software and Drivers CD
