HDS Diagnostic System for Honda Newest V3.016.033
HDS Diagnostic System for Honda Newest V3.016.033
Description
1.HIM (Honda & Acura Diagnostic System) is the latest diagnostic equipment for Honda vehicles. Diagnostic functions available for vehicles of HONDA/ACURA from year 1992 to 2011.
2.Test coverage: Dynamical, Body, Chassis, ABS, SRS, Anti-theft, etc.
3.HIM supports CAN BUS system, and it can re-program the Auto ECU.This HIM is based on PC operation platform.
Functions supported by Honda/Acura protocols
- Reading and decoding fault codes from control blocks memory;
- Deleting fault codes;
- Displays system current parameters in digital form;
- Displays system current parameters in graphical form;
- Combined displaying of data;
- Management of executive devices;
- Logs keeping: writing and keeping of digital parameters in memory;
- Special functions: changing of permissible settings of blocks, programming etc.
Functions supported by OBD-II protocols
Mode $01 - Displays system current parameters in digital form (up to 8 parameters at once);
Mode $02 - Displays parameters of freeze frame;
Mode $03 - Reading and decoding of fault codes from control block memory;
Mode $04 - Deleting of fault codes (memory clearing);
Mode $05 - Displays results of oxygen sensors;
Mode $06 - Displays results of changeably controlled systems and components;
Mode $07 - Displays results of constantly controlled systems and components;
Mode $08 - Management of executive devices;
Mode $09 - Displays car identification info.
Hardware and software requirements
- PC or laptop with either Windows 2000 Professional (SP4 or later) or XP (SP1 or later).Hard disk drive with at least 400MB of free space.
- CD-ROM drive (if a high-speed Internet connection is not available)
- RS232 port required to connect PC to HIM (PC version software only)
- Monitor capable of displaying in VGA mode or above (1024 x 768 recommended)
- Internet connection (high-speed connection recommended)
Package Including

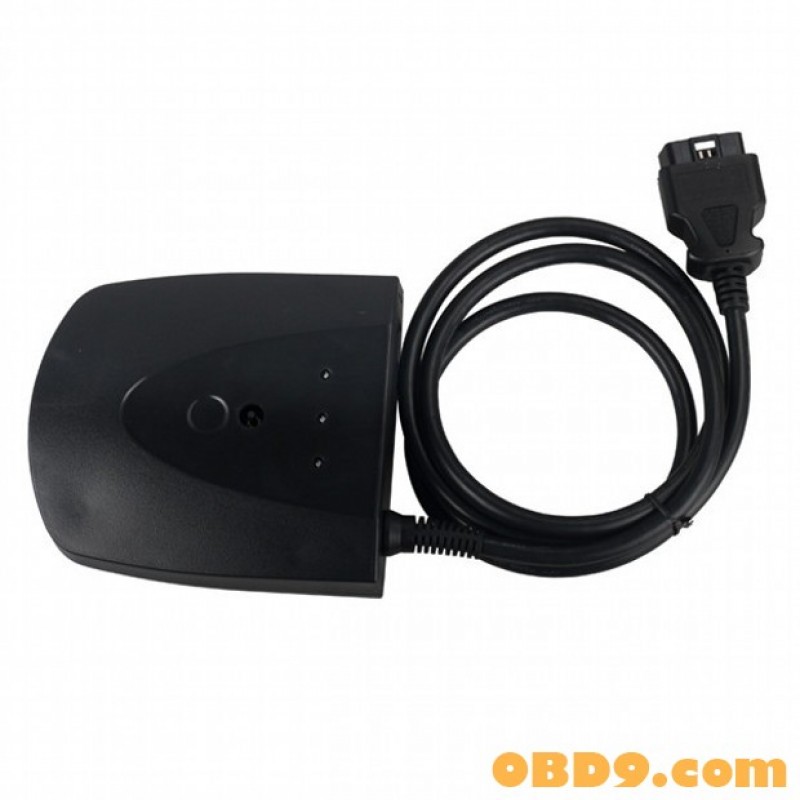

- 1pc x HIM with OBDII Cable
- 1pc x DVD
- 1pc x 3 Pin Cable
- 1pc x RS232 Cable
FAQ:
Q:Hi,I have interest in your products,can this one be updated?Thanks
A:Hello,friend,sorry,this tool can not updated now.
