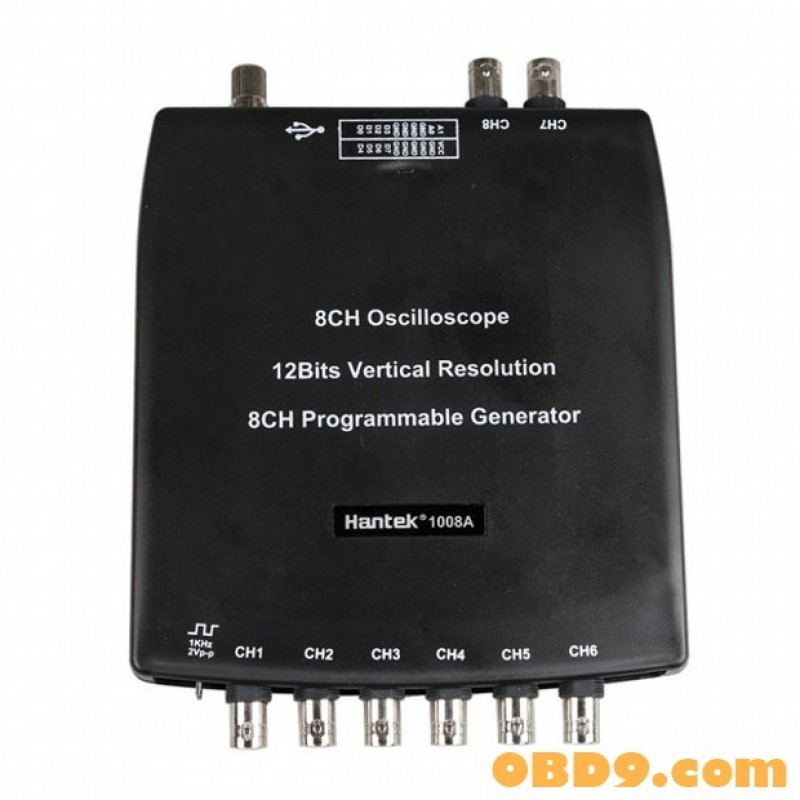

Hantek 1008A 8 Channel PC Oscilloscope DAQ 8CH Generator
Cost-effective 8 channels oscilloscope for vehicle testing; 2.4MSa/s, 12bits; DAQ card function; 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.
Hantek 1008A 8CH PC Oscilloscope/DAQ/8CH Generator
Top 3 threes to get 1008A 8CH PC Oscilloscope/DAQ/8CH Generator:
1. Highly efficient and cost-effective; 8 channels oscilloscope for vehicle testing
2. 2.4MSa/s real time sampling rate, 12bit vertical resolution; DAQ card function
3. 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.
1) Oscilloscope
8 channels oscilloscope, 2.4MSa/s real time sampling rate
12 bits vertical resolution, spectrum analysis function
2) Programmable Generator
8 channels programmable generator
Can analog signals of crankshaft, camshaft etc.
3) Others
USB 2.0 interface plug and play, and no need extra power supply;
More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.
Hantek 1008A 8CH PC Oscilloscope/DAQ/8CH Generator parameters:
| Model | Hantek1008 |
| Oscilloscope Mode |
| Vertical System |
| Analog Channel | 8 |
| Input Impedance | Resistance: 1MΩ |
| Input Sensitivity | 10mV/div to 5V/div |
| Input Coupling | DC |
| Resolution | 12 bits |
| Horizontal System |
| Memory Depth | 4K |
| Max. Input | 400V (DC+AC Peak) |
| Real-Time Sampling Rate | 2.4MSa/s |
| Time BaseRange | | 1ns/div to 20000s/div(1-2-5sequences) |
|
| Time Base Precision | ±50ppm |
| Trigger System |
| Time Base Range | 1ns/div to 20000s/div(1-2-5sequences) |
| Time Base Precision | ±50ppm |
| Trigger Source | CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8 |
| Trigger Mode | Edge |
| X-Y Mode |
| X-Axis Input | CH1 |
| Y-Axis Input | CH2 |
| Cursors and Measurement |
| Voltage Measurement | Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot |
| Time Measurement | Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
| Cursors Measurement | Horizontal ,Vertical, Track, Auto Measure Modes |
| Waveform Signal Process | +,- , x,÷, FFT, Invert |
Voltage Range
| 10mV to 5V/div @ x 1 probe
100mV to 50V/div @ x 10 probe
10V to 5000V/div @ x 1000 probe
100V to 50000V/div @ x 10000 probe
200mV to 100V/div @ 20:1
|
Current Range
| 100mA to50.0A/div @ CC65(20A)
1000mA to500.0A/div @ CC65(65A)
1A to100.0A/div @ CC650(60A)
1A to200.0A/div @CC1100(100A)
10A to2000.0A/div @CC1100(1100A)
|
| FFT | Rectangular, Hanning, Hamming, Blackman Window |
| Math | Addition, subtraction, multiplication, division |
| Programmable Generator |
| Channel | 8 |
| Output Level | LVTTL |
| Frequency Range | 0-250kHz |
| Interface | USB 2.0(Full Speed)
|
| Power | No need extra power supply |
| Size & Weight | 185 x 150 x 27 (mm); 0.35kg |
Package including:
1pc x 8CH USB Auto Scope/DAQ/8CH Generator
1pc x USB Cable
4pc x Connect cable
4pc x BNC Connector
1pc x CD for English software
