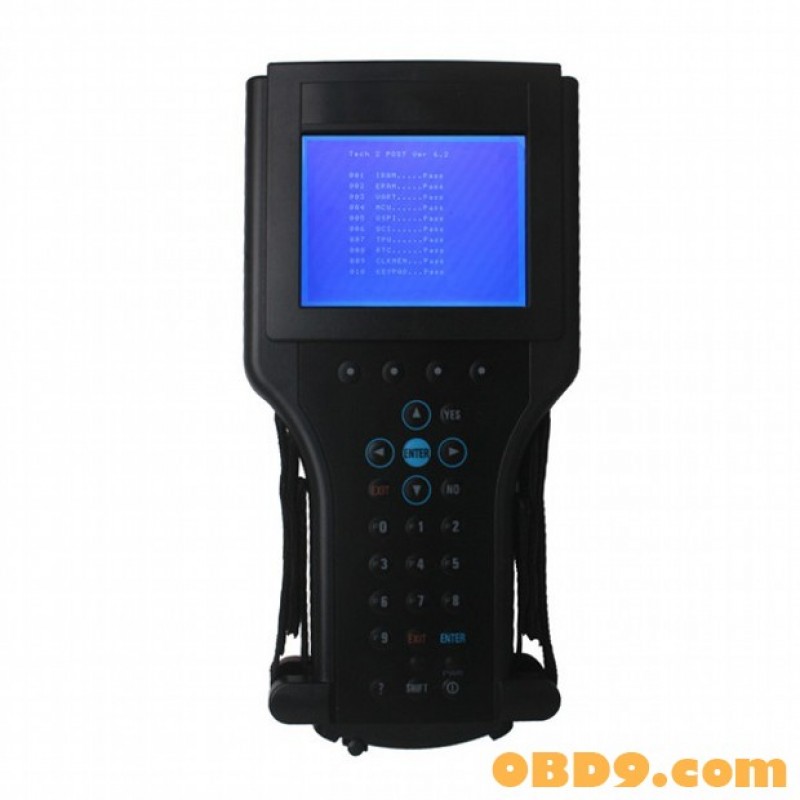

GM Tech2 Diagnostic Scanner with 32MB Card and TIS2000 In Carton Packaging

GM Tech2 Diagnostic Scanner with 32MB Card and TIS2000 In Carton Packaging

$288.00
Ex Tax: $288.00
Brand:GM
Product Code: OBD9P0651
Stock Instock

Overview

GM Tech2 Diagnostic Scanner with 32MB Card and TIS2000 In Carton PackagingGM Tech2 Diagnostic Scanner (Works for GM/SAAB/OPEL/SUZUKI/ISUZU/Holden)1.The Tech-2 is a very good tester used to diagnose GM vehicles.2. GM Tech 2 contains GM software and pr...

GM Tech2 Diagnostic Scanner with 32MB Card and TIS2000 In Carton Packaging

GM Tech2 Diagnostic Scanner (Works for GM/SAAB/OPEL/SUZUKI/ISUZU/Holden)
1.The Tech-2 is a very good tester used to diagnose GM vehicles.
2. GM Tech 2 contains GM software and provides support for on-board diagnostics on all GM systems 1992 thru 2013.
3.It supports multi-language.
4.Support diagnose for 6 cars: GM/ SAAB/ OPEL/ SUZUKI/ ISUZU/HOLDEN
5.TIS 2000 CD included for GM programming function


GM Tech2 Diagnostic Scanner (Works for GM/SAAB/OPEL/SUZUKI/ISUZU/Holden)

This version GM TECH2 with Carton package, shipping weight only 3.15KG, save lots of shipping cost also make your customs clearance much easier.

TECH2 for GM can do diagnose for 6 cars: GM/ SAAB/ OPEL/ SUZUKI/ ISUZU/HOLDEN

Attention: This package comes with one memory card and contains one software, if you need use other software, you need buy additional 32MB memory card.

Software Version:

GM
GM-English 32.008 1991-2013
GM-Germany 32.008 1991-2013
GM-Spanish 32.008 1991-2013
GM-Japanese 32.008 1991-2013
GM-French 32.008 1991-2013
GM-Thai 32.008 1991-2013
GM-Portuguese 32.008 1991-2013
GM-Korean 32.008 1991-2013

SAAB
SAAB-English 148.000

OPEL
OPEL-English V180 1997-2014
OPEL-Italian 133.001 1997-2012
OPEL-Germany 85.001 1997-2008
OPEL-Spanish 91.001 1997-2009

Holden
HOLDEN-English?? V149 1999-2013

SUZUKI
SUZUKI-English 01.210.020

ISUZU
ISUZU-English CAN-BUS 107.021 2010- (CAN-BUS support car models after 2010)
ISUZU-English K-Line 11.62 1996-2013 (K-line support car models from 1996 to 2011)
(If you want ISUZU software, please tell us you want CAN-BUS or K-line)

TIS2000 do till 2007 year GM car programming.

TECH2 for GM Features:

1) GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
2) Support for on-board diagnostics on all GM systems 1992 thru current year.
3) Removable hardware modules provide insurance against scan tool obsolescence.
4) Large, easy-to-read backlit screen.
5) RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
6) Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
7) Ability to view the status of vehicle diagnostic tests as they run.
8) Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

Vetronix Tech 2 Specifications

1) Microprocessor: 32 bit,16 MHz
2) Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.
3) Communications: Integral RS232 communication port.
4) Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface;

You will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter.

Once the module is connected, it can be used on all GM vehicle applications,even those vehicles using other platforms such as OBD I and OBD II.

GM vehicles utilize the CAN interface

05 Buick Allure (3.6L)
05 Buick LaCrosse (3.6L)
05 Buick Rainier (5.3L)
04-05 Buick Rendezvous (3.6L)
04-05 Cadillac CTS (3.6L)
04-05 Cadillac SRX (3.6L / 4.6L)
04-05 Cadillac XLR (4.6L)
05 Cadillac STS (3.6L / 4.6L)
05 Chevrolet Cobalt (2.2L)
05 Chevrolet Corvette (6.0L)
05 Chevrolet Equinox (3.4L)
05 Chevrolet TrailBlazer (5.3L)
05 Chevrolet SSR (6.0L)
04 Chevrolet Malibu (Body/Chassis only)
05 Chevrolet Malibu (3.5L)
05 GMC Envoy (5.3L)
05 Pontiac G6 (3.5L)
05 Pontiac GTO (6.0L)
05 Pontiac Pursuit (2.2L)

GM Tech2 Connection with Candi interface Picture

GM Tech2 Connection with Candi interface Picture
GM Tech2 Connection without Candi interface picture

GM Tech2 Connection without Candi interface picture
Package list:

Tech-2 Flash Tester
32 MB PCMCIA Card with GM OE Applications
CAN diagnostic interface module(CANdi) and instruction sheet download (199.2 kb)
RS232 cable and user`s manual
RS232-DB9 adapter
DLC Cable, DLC Loopback Adapter
12V Cigarette Lighter Power Cable
SAE 16/19 Adapter
NAO 12/19 Adapter
Battery Power Cable
TIS 2000 CD

Difference between GM tech 2 serials and GM MDI

ContentGM Tech 2 SP23, SP23-B, SP23-B3, SP23-CGM MDI SP163
LanguageGM-English, German, Spanish , Japanese, French, Thai , Portuguese, Korean
SAAB-English
OPEL-English, Italian , German,Spanish
HOLDEN-English
SUZUKI-English
ISUZU-English
Multi-language: English, French, German, Japanese, Italian and so on.
Total 30 languages to choose.
UpdateVia 32MB Software Cardcan not update
Activationno need activeyes
Advantagecannot plug original software card, but can support original programcan support software from original factory
OS requirementno need connect to the PCWin XP only
Internet connectionno need connect to the PCcan not connect to the internet then install the software, because once connect internet, it will remind you update the software
Support Car ModelCannot support truck, only for cars, Support all GM systems 1992 thru current year. such as GM/ SAAB/ OPEL/ SUZUKI/ ISUZU/HOLDENMDI can test all GM car from 1990-2012 year.
Support programingsupport reprogramming, but need to use with TIS2000 togethersupport offline program,such as chevrolet,opel, but not for all cars




GM Tech2 Diagnostic Scanner with 32MB Card and TIS2000 In Carton Packaging Software Download

GM Tech2 Diagnostic Scanner with 32MB Card and TIS2000 In Carton Packaging User Manual
