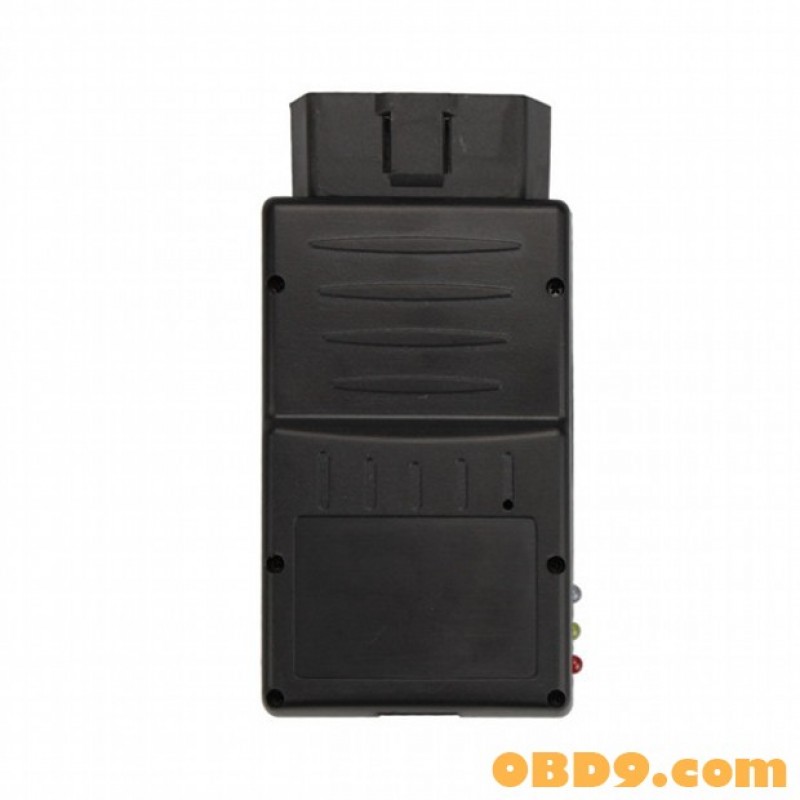

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Diagnostic Tool

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Diagnostic Tool

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Diagnostic Tool
1.Designed as a replacement pass-through vehicle communications device that can be used for the majority of the JLR SDD diagnostic applications
2.JLR SDD Version: V139
3.JLR Approved device, replacement for JLR SDD VCM

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Vehicles

Get DA-Dongle J2534 for 5 Reasons:

1. The DA-Dongle J2534 device is simple and easy to use
2. JLR Approved device, replacement for JLR SDD VCM
3. Covers CAN, & ISO9141 vehicle networks
4. 12ft USB cable as standard included
5. Easy to update for J2534 new functionality

Jaguar & Land Rover Vehicle Coverage



DA-Dongle J2534 Functions:

1. It will allow normal operation with the JLR SDD diagnostic tool,once the J2534 DLL files are loaded.
2. The DA-Dongle J2534 connects directly to the vehicle OBDII (diagnostic) connector and then to a laptop via a USB cable for use with SDD
3. Only SCP communications are not possible with this device

How to operate in J2534 mode?

1. Download the latest J2534 DLL software files from the Diagnostic Associates web site and install these on the SDD laptop.
2. Connect the J2534 device to the vehicle OBDII connector (the device powers from the vehicle).
3. Connect the 12ft USB cable to the J2534 device and the other end to the SDD laptop.
4. The red vehicle power (PWR) LED will illuminate to show that the device is powered.
5. During communication with the vehicle the status (STS) LED will flash green.
T6. he device interacts with the SDD diagnostic tool in the same way as the existing VCM.

Package Including:

1pc x DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Vehicles

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Diagnostic Tool Software Download

DA-Dongle J2534 SDD VCI Device for Jaguar & Land Rover Diagnostic Tool User Manual
