2012 Newest Version XPROG-M V5.3 Plus with Dongle

2012 Newest Version XPROG-M V5.3 Plus with Dongle

2012 Newest Version XPROG-M V5.3 Plus with Dongle is an univeral ecu progamming tool which only can be used on windows xp english system.

2012 Newest Version XPROG-M V5.3 Plus with Dongle

You'd better work this software on winodws xp English system.

XPROG-M V5.3 software display

Difference between XPROG-M V5.3 and V5.0-V5.3

V5.3


V5.0

Caution

Before connect the USB dongle to PC and run software, please disable the antivirus and firewall (or uninstall the antivirus software); once the software is deleted or corrupted by mistake, we could not supply back up software!

68 HC908

XC68HC708AZ60 (8 H62A)
0 L72A
3 K56G
0 L07H
0 L59XZ, reading and writing, support network security box down from the reading and writing
Siemens IMMO new 0 L72A E security box down from reading and writing
MingRui SRS computer 1 L02M literacy and the wiring diagram
1 J35D (68 HC908AZ60) EEPROM of reading and writing

9 S12X

9 S12XDA/B/G 128 EEPROM + FLASH, reading, writing
9 S12XDA/B/G 128 EEPROM + FLASH encryption, reading, writing
9 S12XDT/P384 EEPROM + FLASH, reading, writing
9 S12XDT/P384 EEPROM + FLASH encryption, reading, writing
9 S12XHZ256, 9 S12XHZ384 EEPROM + FLASH, reading, writing
9 S12XHZ256, 9 S12XHZ384 EEPROM + FLASH reading and writing, reading, writing
9 S12XHZ512 EEPROM + FLASH reading and writing (support fox instrument replacement CPU)
9 S12XHZ512 encryption EEPROM + FLASH reading and writing (support high 6 way view instrument)
2011 new sound of S12XEG384 BCU 9 (3 M25J) EEPROM read, the wiring diagram

TMS

Some TMS370 374

Other

Add the following meter:
2006 TuAn
2009-2010 step into soar team champion edition
2010 1.4 TSI step into soar team
SEAT 2006 LEON
Add some meter hookup
BOSCH engine computer MPC wiring definition

Package Including

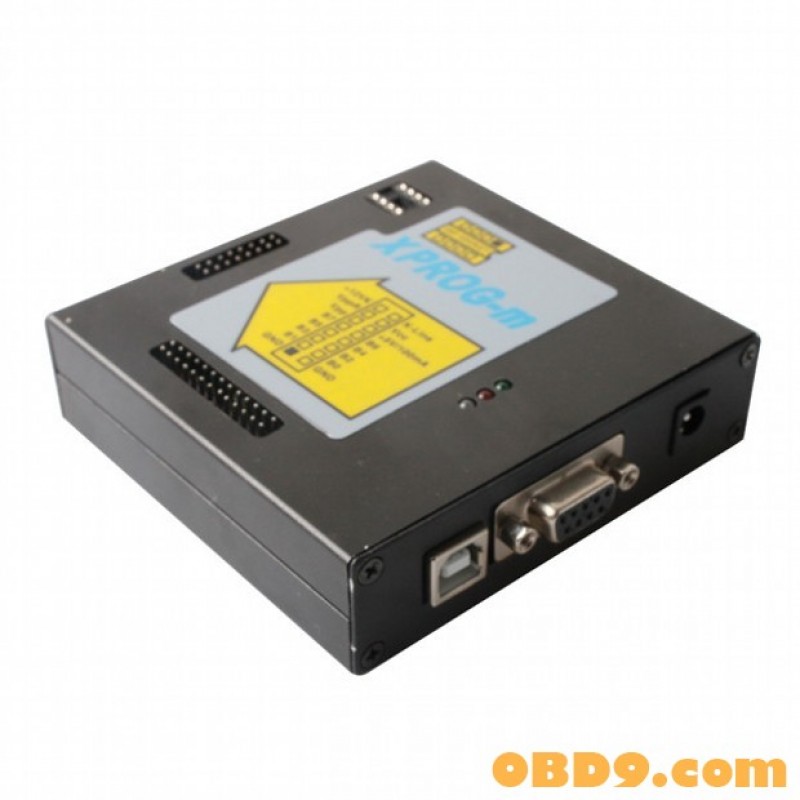

XPROG-M machine
USB cable
USB dongle+CD software
16PIN cable
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP144 adaptor
QFP80 adaptor
QFP64 adaptor
QFP112 adaptor
HC05BX adaptor (PLC52 1-002-0004)
HC05BX adaptor (QFP64 1-002-0005)
MC68HC05V12 adaptor (1-002-0009)
HC(S)12 BDM adaptor (1-002-0017)
M35080 ICP adaptor (1-002-0006)
TMS374 adaptor (1-002-0010)
TMS374/uPD78 IC adaptor (1-002-0008)
TMS370 adaptor (PLCC28 1-002-0002)
HC11E9/EA9 adaptor (PLCC52 1-002-0011)
TMS370 adaptor (PLCC28 1-002-0001 / PLCC68 1-002-0003)
TMS370 adaptor (PLCC28 1-002-0001 / PLCC68 1-002-0003)

2012 Newest Version XPROG-M V5.3 Plus with Dongle Software Download

2012 Newest Version XPROG-M V5.3 Plus with Dongle User Manual
