New Opcom OP-Com V2012 Can OBD2 Opel Firmware V1.59 with PIC18F458 Chip Support Cars Till 2014
$30.00
Ex Tax: $30.00
Product Code: OBD9P0531
Stock Instock
Overview
New Opcom OP-Com V2012 Can OBD2 Opel Firmware V1.59 with PIC18F458 Chip Support Cars Till 2014OPCOM V2012 diagnostic tool for Opel cars covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B. opc...New Opcom OP-Com V2012 Can OBD2 Opel Firmware V1.59 with PIC18F458 Chip Support Cars Till 2014
OPCOM V2012 diagnostic tool for Opel cars covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B. opcom V2012 lets you read and clear fault codes, support many control units.Software version: V2012
Opcom OP-Com V2012 Can OBD2 Opel Firmware V1.59 with PIC18F458 Chip
VERSION: V2012
Firmware Version: 1.59
OP-COM is a PC based diagnostic program.
Kindly Note: Never Update It Online, It Will Damage The OP-COM ! There is no need to active the software, can be used directly
Description
OP-COM - PC based Opel diagnostic
VERSION: V2012
Firmware version: 1.59
OP-COM is a PC based diagnostic program.
OPCOM V2012 Function
1. It covers almost all Opel cars, even new cars with CAN-BUS based diagnostic, such as Vectra-C, Astra-H, Zafira-B.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since Opel uses many pin in the OBD connector, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication.
PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information
OPCOM V2012 Feature
1) Full status information (Present, Not present, Intermittent)
2) You can print out, save, or copy the fault codes to any other application. From the fault codes window, you can go directly to the measuring blocks window.
3) The program shows you measuring block information on many control module, you can choose anything from the list on your own.
4) The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or Bosch units are faster (using KWP-2000), and the newest CAN based control units are very fast!
You can also run output tests on many controllers.
PIN6-PIN14
PIN3-PIN11
PIN1
HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps
MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps
SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps

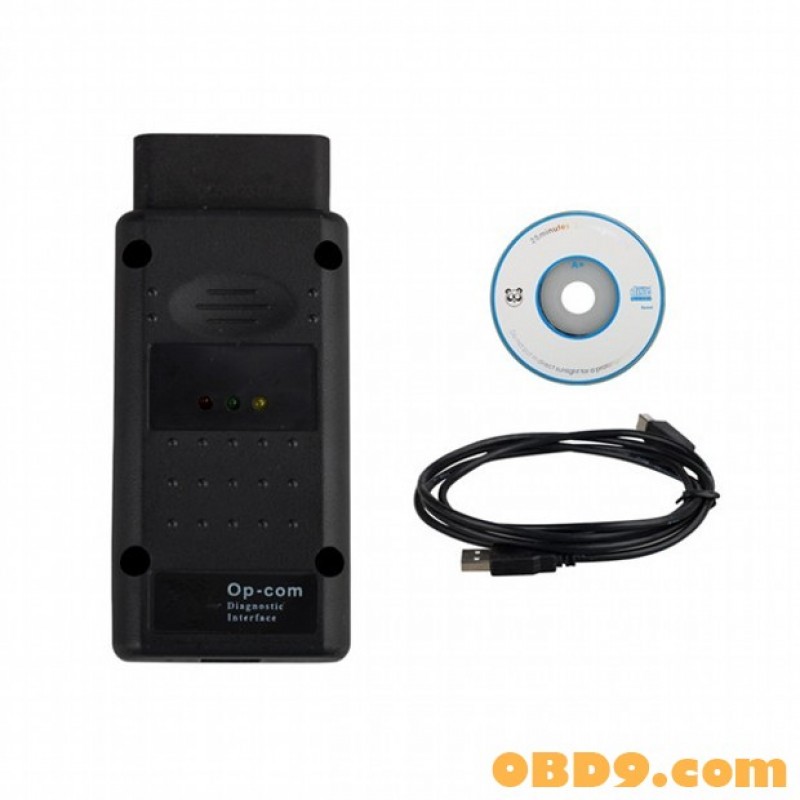

Package Including
1. OP COM Interface
2. USB Cable
3. Software and Drivers CD
OPCOM V2012 Software Display:
