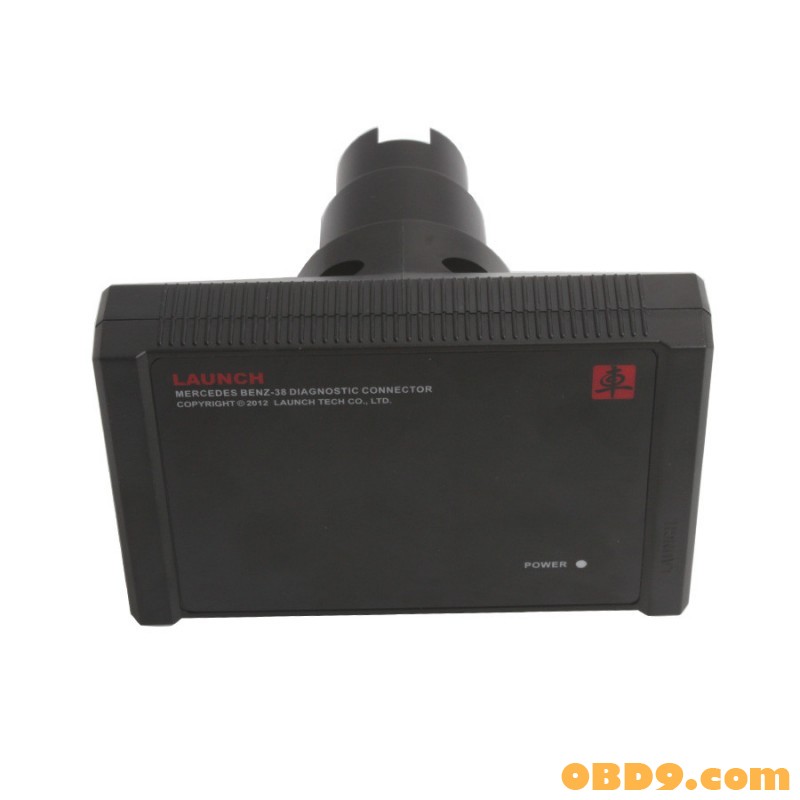

Mercedes benz 38Pin Connector

Mercedes benz 38Pin Connector

Works on all Mercedes Benz vehicles with a 38 PIN diagnostic connector.

Mercedes Benz Vehicles with a 38 PIN Diagnostic Connector

Features Specifications

Cable Definition

Pin-out Diagram
OBDII Connector(Female) ---- BENZ 38Pins Connector
4+5----------------------------------1(Signal Ground)
7------------------------------------------15(K Line)
16-----------------------------------------3(Power)

Is This Connector Compatible With My Vehicle?
Yes -----It works on all Mercedes Benz vehicles with a 38 PIN diagnostic connector.
