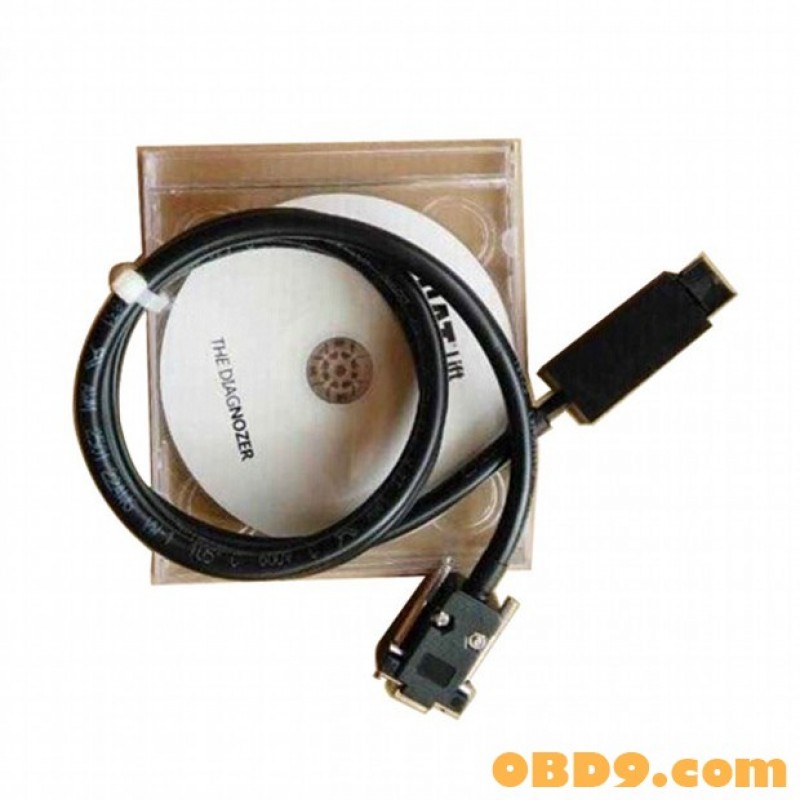

16A68-11320 Diagnostic Cable for CAT and MITSUBISHI Lift Trucks
16A68-11320 Diagnostic Cable for CAT and MITSUBISHI Lift Trucks
16A68-11320 Diagnostic Cable for CAT and MITSUBISHI Lift Trucks
Features:
- Protection function,
- Multi-language support,
- The choice of the model
- Monitoring values
- Read fault codes,
- The monitoring of the history of the accident,
- Monitoring of configuration parameters and the ability to change,
- The ability to preview the chart I / O on the display,
- Test function active
- Print the data.
Compatible Model Name and Controller Part Number:
| Diagnostic cable | Model name | Controller Part No. |
| | P3000-7000 | |
| C3000-65000 | 16A36-X001X(VCM-1) |
| DP/GP15N-35N | |
| GC15-33N | 16A33-X004X(VCM-2) |
| GP/DP15ND-35NFT | 16A35-X001X(DCM) |
| ET3000-4000 | |
| EP16NT-20NT | 16A70-X201X(Traction inverter) |
| EP16N-20CN | 16A70-X202X(Hydraulic inverter) |
| | |
| | |
| E3000-6500 | 16A70-X308X(Logic) |
| EC15N-30N | 16A70-X301X(Traction inverter) |
| | 16A70-X3022X(Hydraulic inverter) |
| ES3000-5000 | 16A70-X108X(Logic) |
| | |
| | 16A70-X101X(Traction inverter) |
| | 16A70-X102X(Hydraulic inverter) |
| P17500-36000 | 16A36-X004X(VCM-3) |
| P13500LPG-P11500LPG | 16A36-X005X(VCM-3 OP) |
| DP80N-160N | |
| GP60N-70N | |
| EP10KRT-15KRT PAC | 16A70-X508X(Logic) |
| | 16A70-X501(Traction inverter) |
| | 16A70-X502(Hydraulic inverter) |
| NR14N-25NH | 16A70-X403X(Logic) |
| | 16A78-X101X(OUT-UNIT) |
| | 16A78-X102X(IN-UNIT) |
| | 16A70-X401X(Traction inverter) |
| | 16A70-X402X(Hydraulic inverter) |
Package including:
1pc x 16A68-11320 Diagnostic Cable for CAT and MITSUBISHI Lift Trucks
16A68-11320 Diagnostic Cable for CAT and MITSUBISHI Lift Trucks Software Download
16A68-11320 Diagnostic Cable for CAT and MITSUBISHI Lift Trucks User Manual
